Ebara EVMSU EVMSULN3-2F0075T3R - 0.75 HP

0.75 HP 3-Phase 208-230/460V Flanged EVMSU
← Back to EVMSU Series
Ebara EVMSU EVMSULN3-2F0075T3R - 0.75 HP

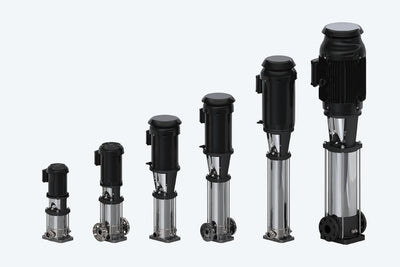

📷 Pump photo
Representative photo only. Actual product appearance may vary by model (e.g., connection type, motor configuration).
Performance curve for EVMSULN3-2F0075T3R
📈 Performance curve
📷 Click image to expand ↗
$1,921.20

Estimated Lead Time: Lead time to ship is estimated at 1–2 weeks after factory order entry (allow 2–3 days for order entry). Actual availability subject to stock on hand at time of order entry.

Returns are subject to a 35% restocking fee passed on by the factory, as these are custom-built products.

EVMSU Series stainless steel vertical multistage centrifugal pump with Ebara's Shurricane™ impeller design. 316 SS construction for clean-water pressure boosting, water supply, irrigation, filtration, and chemical-feed applications. Small-frame size 3 with 2 impeller stages, close-coupled to a NEMA TEFC motor. Features low-NPSH design.

Specifications

Model Number EVMSULN3-2F0075T3R
Horsepower 3/4 HP
Stages 2
Phase 3-Phase
Voltage 208-230/460V
Motor Enclosure TEFC
Speed 3600 RPM (2-Pole)
Construction 316 SS
Mechanical Seal SiC+Graphite/SiC/EPDM
Connection Round ANSI flange
Configuration Vertical
Shipping Weight 75 lbs

Ships from Rock Hill, SC.
