Ebara EVMSU series pump model EVMSUL5-16F0750T3S - 7.5 HP
7.5 HP
16 Stages
3-Phase
TEFC
208-230/460V
Flanged
EVMSU
← Back to EVMSU Series Repair parts & exploded diagram →

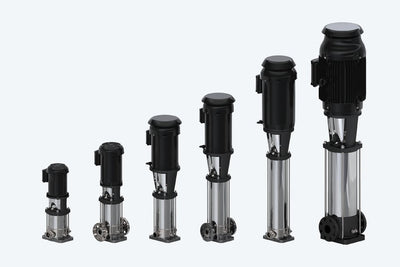

📷 Pump photo
Representative photo only. Actual product appearance may vary by model (e.g., connection type, motor configuration).
📈 Performance curve
Estimated Lead Time: Lead time to ship is estimated at 1–2 weeks after factory order entry (allow 2–3 days for order entry). Actual availability subject to stock on hand at time of order entry.
Returns are subject to a 35% restocking fee passed on by the factory, as these are custom-built products.
EVMSU Series stainless steel vertical multistage centrifugal pump with Ebara's Shurricane™ impeller design. 316 SS construction for clean-water pressure boosting, water supply, irrigation, filtration, and chemical-feed applications. Small-frame size 5 with 16 impeller stages, close-coupled to a NEMA TEFC motor.
Specifications
| Model Number | EVMSUL5-16F0750T3S |
| Horsepower | 7.5 HP |
| Stages | 16 |
| Phase | 3-Phase |
| Voltage | 208-230/460V |
| Motor Enclosure | TEFC |
| Speed | 3600 RPM (2-Pole) |
| Construction | 316 SS |
| Mechanical Seal | Silicon Carbide/Carbon/FPM |
| Connection | Round ANSI flange |
| Configuration | Vertical |
| Shipping Weight | 181 lbs |
Ships from Rock Hill, SC.
