Ebara EVMSU EVMSU1-7F0075D1S - 0.75 HP

0.75 HP 1-Phase ODP 1-Phase 115/230V Flanged EVMSU
← Back to EVMSU Series
Ebara EVMSU EVMSU1-7F0075D1S - 0.75 HP

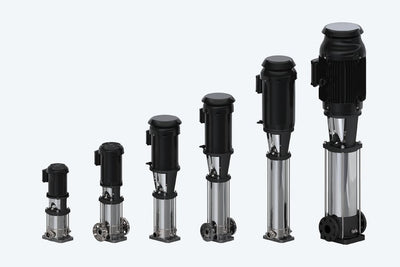

📷 Pump photo
Representative photo only. Actual product appearance may vary by model (e.g., connection type, motor configuration).
Performance curve for EVMSU1-7F0075D1S
📈 Performance curve
📷 Click image to expand ↗
$1,899.60

Estimated Lead Time: Lead time to ship is estimated at 1–2 weeks after factory order entry (allow 2–3 days for order entry). Actual availability subject to stock on hand at time of order entry.

Returns are subject to a 35% restocking fee passed on by the factory, as these are custom-built products.

EVMSU Series stainless steel vertical multistage centrifugal pump with Ebara's Shurricane™ impeller design. 304 SS construction for clean-water pressure boosting, water supply, irrigation, filtration, and chemical-feed applications. Small-frame size 1 with 7 impeller stages, close-coupled to a NEMA ODP motor.

Specifications

Model Number EVMSU1-7F0075D1S
Horsepower 3/4 HP
Stages 7
Phase 1-Phase
Voltage 115/230V
Motor Enclosure ODP
Speed 3600 RPM (2-Pole)
Construction 304 SS
Mechanical Seal Silicon Carbide/Carbon/FPM
Connection Round ANSI flange
Configuration Vertical
Shipping Weight 88 lbs

Ships from Rock Hill, SC.

Resources & Downloads

📄 Product Brochure 📄 Technical Data Sheet 📈 Performance Curves 📖 Installation & O&M Manual
