Ebara CDX CDX120/106T2 - 1 HP

1.0 HP 3-Phase Standard 230/460V Manual NPT Closed Impeller CDX
← Back to CDX Series
Ebara CDX CDX120/106T2 - 1 HP

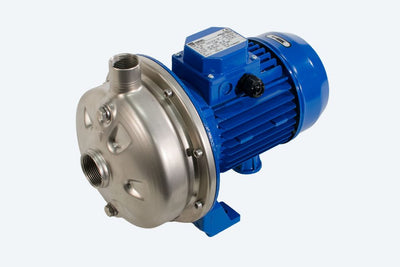

📷 Pump photo
Representative photo only. Actual product appearance may vary by model (e.g., connection type, motor configuration).
Performance curve for CDX120/106T2
📈 Performance curve
📷 Click image to expand ↗
$799.50

Estimated Lead Time: Lead time to ship is estimated at 1–2 weeks after factory order entry (allow 2–3 days for order entry). Actual availability subject to stock on hand at time of order entry.

Returns are subject to a 35% restocking fee passed on by the factory, as these are custom-built products.

Ebara CDX Series end suction centrifugal pump. 304 stainless steel liquid end components. Close-coupled design for water supply, pressure boosting, HVAC, and light industrial applications.

Specifications

Model Number CDX120/106T2
Horsepower 1 HP
Phase 3-Phase
Voltage 230/460V
Operation Manual
Construction 304 Stainless Steel
Weight 23 lbs
Discharge 1" NPT

Ships from Rock Hill, SC.

Resources & Downloads

📄 Product Brochure 📄 Technical Data Sheet 📈 Performance Curves 📏 Dimensions

Warranty

📜 EPAC Warranty — Stainless Steel 📜 EPAC Standard Warranty 📝 Warranty Claim Form
