Ebara CDU4 ACDU4200/55D1C - 0.5 HP

0.5 HP 1-Phase ODP 115/230V Manual CDU4
← Back to CDU4 Series
Ebara CDU4 ACDU4200/55D1C - 0.5 HP

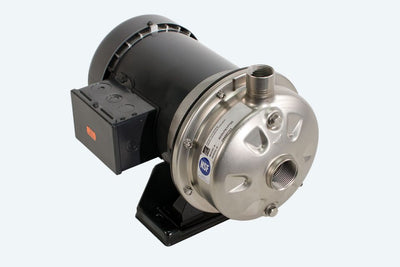

📷 Pump photo
Representative photo only. Actual product appearance may vary by model (e.g., connection type, motor configuration).
Performance curve for ACDU4200/55D1C
📈 Performance curve
📷 Click image to expand ↗
$1,242.00

Estimated Lead Time: Lead time to ship is estimated at Call for availability after factory order entry (allow 2–3 days for order entry). Actual availability subject to stock on hand at time of order entry.

Returns are subject to a 35% restocking fee passed on by the factory, as these are custom-built products.

Ebara CDU4 Series 4-pole end suction centrifugal pump. 304 stainless steel liquid end. 1750 RPM motor for low-speed, low-noise, extended-life operation.

Specifications

Model Number ACDU4200/55D1C
Horsepower 0.5 HP
Phase 1-Phase
Voltage 230V
Operation Manual
Construction 304 Stainless Steel
Weight 30 lbs
Discharge 1 inch NPT

Ships from Sparks, NV.
