Ebara 50DWFU6.752 - 1 HP Manual

1.0 HP 3-Phase 208/230V MANUAL Flanged Channel Impeller DW/DWU/DWXU
← Back to DW/DWU/DWXU Series
Ebara 50DWFU6.752 - 1 HP Manual

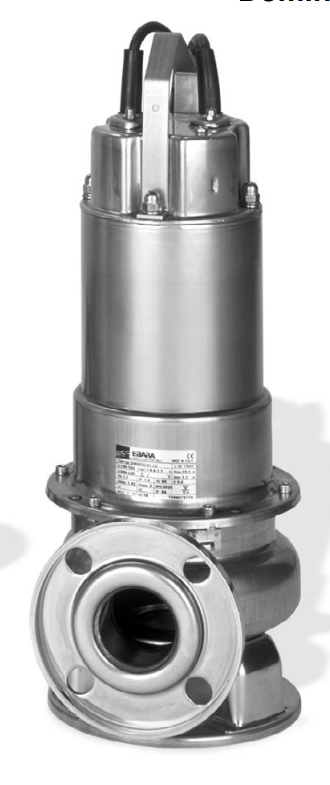

📷 Pump photo
Representative photo only. Actual product appearance may vary by model (e.g., connection type, motor configuration).
Performance curve for 50DWFU6.752
📈 Performance curve
📷 Click image to expand ↗
$1,503.75

Estimated Lead Time: Lead time to ship is estimated at 3–4 weeks after factory order entry (allow 2–3 days for order entry). Actual availability subject to stock on hand at time of order entry.

Returns are subject to a 35% restocking fee passed on by the factory, as these are custom-built products.

DOMINATOR Series submersible sewage/effluent pump. 304 stainless steel construction for maximum corrosion resistance. Designed for residential and light commercial sewage, effluent, and wastewater applications. Non-clog vortex impeller handles solids up to 2 inches.

Specifications

Model Number 50DWFU6.752
Horsepower 1 HP
Phase 3-Phase
Voltage 208/230V
Operation MANUAL
Construction 304 Stainless Steel
Weight 36 lbs
Discharge 2 inch ANSI Flanged

Ships from Rock Hill, SC.

Resources & Downloads

📄 Product Brochure 📄 Technical Data Sheet 📈 Performance Curves 📖 Installation & O&M Manual

Warranty

📜 EPAC Warranty — Stainless Steel 📜 EPAC Standard Warranty 📝 Warranty Claim Form
